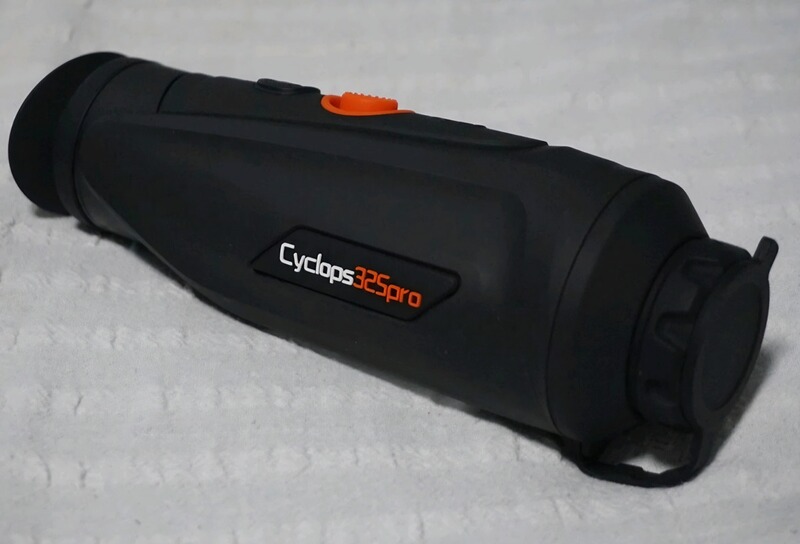

Thermtec Cyclops 325 pro Wärmebildkamera

Thermtec Cyclops 325 pro

Specifications





Sensor Parameters



Items / Specification Cyclops 325



Detector Type Vox Microbolometer



Resolution / Pixel Spacing 384x288/12um



NETD 25mk@300k



Frame Rate 50Hz



Lens 25mm (F#1.0, manual focus)



FOV 10.5°x 7.9°



Image Processing



Digital Zoom / Magnification 1-6x continuous / 2.4x



Color Palette 5+



Noise Reduction 3D noise reduction



Image Enhancement IDE HDR



Display



OLED 0.39 inch?1024×768 resolution



Diopter Control -5+5



Eye Distance 40mm



Function



OLED 8 modes



Language English



Reticle 6+, adjustable coordinates



Memory Card 16G



Heat Track Yes



AI Distance Measurement Yes



Laser Indicator Yes



Photo, Record, Playback Yes



GPS Yes



Power



Battery Type Internal Li-Ion Cell 18650 Li battery x 2



Battery Life Continuous working time 12h



Interface



Type-C Power charge, read data, output analog video



WI-FI Two-way Wi-Fi connection, APP remote control



Environmental Parameters



Working Temperature -20+55



Protection Level IP67 1 meter drop resistance



Physical Parameters



Weight 470g (with battery)



Size 67mm×63mm×190mm
